GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

Name: GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member
Brand: Weiroct
Price: 1 USD

Wholesale GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member from china suppliers

Brand Name : Weiroct

Model Number : GYFTY

Certification : ISO-9001

Place of Origin : Hubei, China

MOQ : 1KM

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Kilometre / Month

Delivery Time : 10 - 15 days

Packaging Details : Standard packaging

Jacket Material : PE

Fiber Count : 4 core

Color : Black

Installation : Aerial, Duct

Armored material : Steel tape

OEM : Available

Loose tube : PBT

Contact Now

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable with FRP Strength Member

Product Description

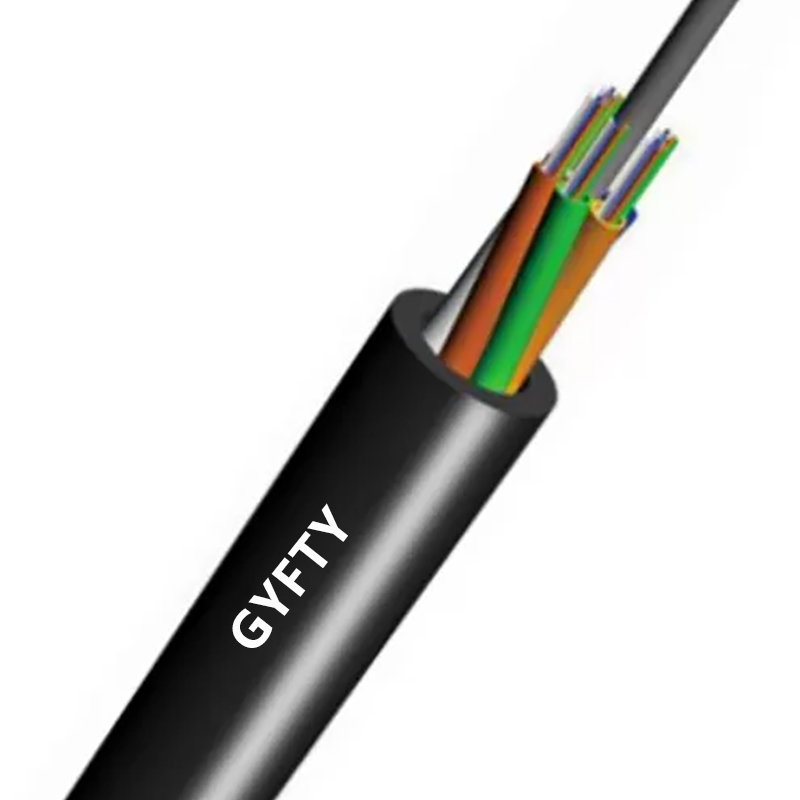

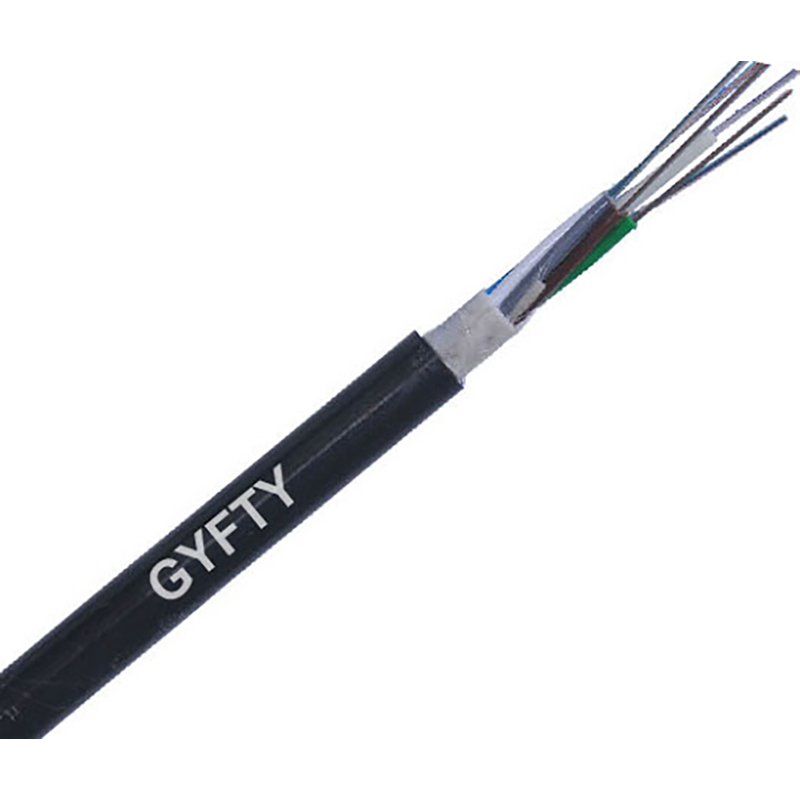

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

Properties
 Non-metallic structure providing excellent anti-electromagnetism. anti thunder and anti-static performances.

 Applicable fields:
 Long-distance telecom, LAN in high-voltage area or access to telecom network
 Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
 Recommended layings methods
 High-voltage area, Aerial

 Advantages:
 1. Low dispersion and attenuation.
 2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
 environmental characteristics.
 3. Anti-electromagnetism ability.
 4. Small cable diameter, light cable weight, easily to install.

 Performance :
 Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
 Fiber : G652D
 Installation: Suitable for aerial or duct
 Application: Apply to Long distance communication system, Local area network system and Subscriber network system
 Lifetime: above 30 years
 Operating temperature : -40°C~+70°C
 Permisson bent radius Static : 10 times O.D.
 Dynamic : 20 times O.D.

Specification

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥200MHZ·km
Bandwidth (Class A)	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
